Ashworth Spiralflow Conveyor Belt
Ashworth Spiralflow Conveyor Belt

SpiralSurf Belts

Features

Specifications

Downloads

Features

SPIRALSURF

SPIRALSURF

TESTED. CERTIFIED. SAFER.

TESTED. CERTIFIED. SAFER.

POSITIVE DRIVE

STRAIGHT RUN

TURN-CURVE

HYGENIC

IMPROVED CIRCULATION REDUCES DWELL TIME

IMPROVED CIRCULATION REDUCES DWELL TIME

TESTED & PROVEN

100,000

CYCLES & BEYOND

TESTED & PROVEN

100,000

CYCLES & BEYOND

TESTED & PROVEN

100,000

CYCLES & BEYOND

Customers trust Ashworth belts for our strength and durability and our new plastic line of belts are no exception. Just like their metal counterparts, our SpiralSurf 100 belts can be customized to meet individual requirements for cooling, proofing, and freezer applications.

Perfect for tight transfers and smaller products.

Customers trust Ashworth belts for our strength and durability and our new plastic line of belts are no exception. Just like their metal counterparts, our SpiralSurf 100 belts can be customized to meet individual requirements for cooling, proofing, and freezer applications

Perfect for tight transfers and smaller products.

Features

  • 1” Pitch
  • Plastic or steel rods available
  • Material Options
    • Acetal (POM) (-40°F up to +200°F)
    • Polypropylne (PP) material (+40°F up to +200°F)
  • 2.2 Turn Ratio
  • Offset rod retention

Benefits

  • Flush grid allows for drainage
  • Smaller open area to accommodate smaller products
  • Offset hole equals easy pin removal
  • Easy to repair onsite
  • No special tool required for assembly
  • Simple link replacement
  • Lighter belt compared to steel
  • More airflow around product
  • Greater heat transfer
  • More efficient cooling / freezing
  • Significant power savings in vertical airflow machines
  • Only 12% contact area (resulting in less condensation on base of product)
  • Improved product quality

LOWER PRESSURE DROP

= MORE AIRFLOW

= CUSTOMER BENEFITS!

LOWER PRESSURE DROP

= MORE AIRFLOW

= CUSTOMER BENEFITS!

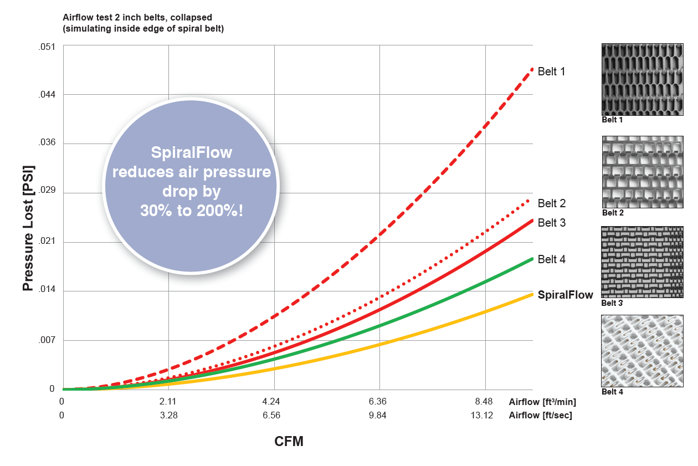

An independent technological institute conducted air flow tests to quantify the air pressure drop (air flow resistance) through commonly available plastic spiral belts. The lower the air pressure drop the more efficient the belt is since more air is passed through it. More air flow results in greater heat transfer, lower dwell times and increased production. Less air resistance also increases the efficiency of evaporator fans, resulting in lower electricity bills.

An independent technological institute conducted air flow tests to quantify the air pressure drop (air flow resistance) through commonly available plastic spiral belts. The lower the air pressure drop the more efficient the belt is since more air is passed through it. More air flow results in greater heat transfer, lower dwell times and increased production. Less air resistance also increases the efficiency of evaporator fans, resulting in lower electricity bills.

Ashworth Spiralflow Conveyor Belt

Superior Strength

SpiralPlast Belts have a unique variable pitch outer edge hinge design that allows for increasing rod deflection. Tension is shared over multiple hinges which prevents concentrated tension on one hinge. The tension sharing design increases operating strength and belt life.

Ashworth Spiralflow Conveyor Belt

Superior Strength

SpiralPlast Belts have a unique variable pitch outer edge hinge design that allows for increasing rod deflection. Tension is shared over multiple hinges which prevents concentrated tension on one hinge. The tension sharing design increases operating strength and belt life.

Ashworth Spiralflow Conveyor Belt Contact Area

Superior Flow

The 45% tapered module design creates a 12% product contact area. This increases airflow around the product’s base which minimizes condensation and improves product release.

FIND MY SPROCKET

Ashworth Spiralflow Conveyor Belt Contact Area

Superior Flow

The 45% tapered module design creates a 12% product contact area. This increases airflow around the product’s base which minimizes condensation and improves product release.

Accessories

Ashworth Spiralflow Guard Edges

Guard Edges

Ashworth Spiralflow Conveyor Belt With Lane Dividers

Lane Dividers

Ashworth Spiralflow Conveyor Belt Open Guard Edges

Open Guard Edges

DIRECTION

spiral

SPIRAL

Multi-directional

MULTI

turn-curve

TURN-CURVE

straight run

STRAIGHT RUN

APPLICATIONS

freezer

FREEZER

proofer

PROOFER

cooler

COOLER

Does this meet your project needs?

Does this meet your project needs?

Does this meet your project needs?

Let’s get started!

Let’s get started!

Let’s get started!

Specifications

Technical Specifications

Select another product option

Technical Specifications Units SpiralSurf 100
Pitch in. [mm] 1.00 [25.40]
Min Turn Radius 2
Max Turn Radius 3
Surface Opening 43%
Available Widths in. [mm] 5.9-60 [149.86-1524]
Pin Diameter in. [mm] 0.16 [4.06]
Backflex Radius in. [mm] 0.98 [24.89]
Color Blue
Minimum Temperature °F [°C] -40.00 [-40.00]
Maximum Temperature °F [°C] 194.00 [90.00]

Available Sprocket Options

Sprocket Reference

Sprocket spec description diagram

Select a product

Select another sprocket size

Nom. Size Display Teeth Pitch Diameter in (mm) Hub Diameter in (mm) Bore Min in (mm) Bore Max in (mm)
2 #2-7 UHMW 7 2.28 (57.91) 2 (50.8) 0 1.31 (33.27)

Material Reference

  • Acetal - polyoxymethylene plastic
  • Celcon - acetal copolymer
  • CI - cast iron
  • Hardened Steel
  • Nylon
  • T303 - stainless steel
  • T316 - stainless steel
  • UMHW - polyethylene plastic

Need more detailed information?

Need more detailed information?

Need more detailed information?

Belt Calculator

Base Belt Weight

Need more detailed information?

Need more detailed information?

Need more detailed information?

Downloads

Downloads

Features

SPIRALSURF

SPIRALSURF

TESTED. CERTIFIED. SAFER.

TESTED. CERTIFIED. SAFER.

POSITIVE DRIVE

STRAIGHT RUN

TURN-CURVE

HYGENIC

IMPROVED CIRCULATION REDUCES DWELL TIME

IMPROVED CIRCULATION REDUCES DWELL TIME

TESTED & PROVEN

100,000

CYCLES & BEYOND

TESTED & PROVEN

100,000

CYCLES & BEYOND

TESTED & PROVEN

100,000

CYCLES & BEYOND

Customers trust Ashworth belts for our strength and durability and our new plastic line of belts are no exception. Just like their metal counterparts, our SpiralSurf 200 belts can be customized to meet individual requirements for cooling, proofing, and freezer applications.

Perfect for tight transfers and smaller products.

Customers trust Ashworth belts for our strength and durability and our new plastic line of belts are no exception. Just like their metal counterparts, our SpiralSurf 200 belts can be customized to meet individual requirements for cooling, proofing, and freezer applications

Ideal for heavier/larger products.

Features

  • 2” Pitch
  • Plastic or steel rods available
  • Material Options
    • Acetal (POM) (-40°F up to +200°F)
    • Polypropylne (PP) material (+40°F up to +200°F)
  • 1.6 Turn Ratio*
  • Offset rod retention

*Subject to belt width.



Benefits

  • Flush grid allows for drainage
  • Larger open area allows for better air flow
  • Offset hole equals easy pin removal
  • Easy to repair onsite
  • No special tool required for assembly
  • Simple link replacement
  • Lighter belt compared to steel
  • Lane dividers and guard edges available to keep product from falling off belt
  • More airflow around product
  • Greater heat transfer
  • More efficient cooling / freezing
  • Significant power savings in vertical airflow machines
  • Only 12% contact area (resulting in less condensation on base of product)
  • Improved product quality

LOWER PRESSURE DROP

= MORE AIRFLOW

= CUSTOMER BENEFITS!

LOWER PRESSURE DROP

= MORE AIRFLOW

= CUSTOMER BENEFITS!

An independent technological institute conducted air flow tests to quantify the air pressure drop (air flow resistance) through commonly available plastic spiral belts. The lower the air pressure drop the more efficient the belt is since more air is passed through it. More air flow results in greater heat transfer, lower dwell times and increased production. Less air resistance also increases the efficiency of evaporator fans, resulting in lower electricity bills.

An independent technological institute conducted air flow tests to quantify the air pressure drop (air flow resistance) through commonly available plastic spiral belts. The lower the air pressure drop the more efficient the belt is since more air is passed through it. More air flow results in greater heat transfer, lower dwell times and increased production. Less air resistance also increases the efficiency of evaporator fans, resulting in lower electricity bills.

Ashworth Spiralflow Conveyor Belt

Superior Strength

SpiralPlast Belts have a unique variable pitch outer edge hinge design that allows for increasing rod deflection. Tension is shared over multiple hinges which prevents concentrated tension on one hinge. The tension sharing design increases operating strength and belt life.

Ashworth Spiralflow Conveyor Belt

Superior Strength

SpiralPlast Belts have a unique variable pitch outer edge hinge design that allows for increasing rod deflection. Tension is shared over multiple hinges which prevents concentrated tension on one hinge. The tension sharing design increases operating strength and belt life.

Ashworth Spiralflow Conveyor Belt Contact Area

Superior Flow

The 45% tapered module design creates a 12% product contact area. This increases airflow around the product’s base which minimizes condensation and improves product release.

FIND MY SPROCKET

Ashworth Spiralflow Conveyor Belt Contact Area

Superior Flow

The 45% tapered module design creates a 12% product contact area. This increases airflow around the product’s base which minimizes condensation and improves product release.

Accessories

Ashworth Spiralflow Guard Edges

Guard Edges

Ashworth Spiralflow Conveyor Belt With Lane Dividers

Lane Dividers

Ashworth Spiralflow Conveyor Belt Open Guard Edges

Open Guard Edges

DIRECTION

spiral

SPIRAL

Multi-directional

MULTI

turn-curve

TURN-CURVE

straight run

STRAIGHT RUN

APPLICATIONS

freezer

FREEZER

proofer

PROOFER

cooler

COOLER

Does this meet your project needs?

Does this meet your project needs?

Does this meet your project needs?

Let’s get started!

Let’s get started!

Let’s get started!

Specifications

Technical Specifications

Select another product option

Technical Specifications Units SpiralSurf 200
Pitch in. [mm] 2.00 [50.80]
Min Turn Radius 2
Max Turn Radius 3
Surface Opening 65%
Available Widths in. [mm] 9.8-60 [248.92-1524]
Pin Diameter in. [mm] 0.24 [6.10]
Backflex Radius in. [mm] 3.94 [100.08]
Color Blue
Minimum Temperature °F [°C] -40.00 [-40.00]
Maximum Temperature °F [°C] 194.00 [90.00]

Available Sprocket Options

Sprocket Reference

Sprocket spec description diagram

Select a product

Select another sprocket size

Nom. Size Display Teeth Pitch Diameter in (mm) Hub Diameter in (mm) Bore Min in (mm) Bore Max in (mm)

Material Reference

  • Acetal - polyoxymethylene plastic
  • Celcon - acetal copolymer
  • CI - cast iron
  • Hardened Steel
  • Nylon
  • T303 - stainless steel
  • T316 - stainless steel
  • UMHW - polyethylene plastic

Belt Calculator

Base Belt Weight

Need more detailed information?

Need more detailed information?

Need more detailed information?

Downloads

Downloads
